EVERYTHING YOU NEED TO HAVE FUN ON THE TRAIL. SMOOTH SUSPENSION LETS YOU FLOAT OVER ROCKS, ROOTS AND RUTS. CONFIDENT GEOMETRY KEEPS YOU IN CONTROL. AND QUICK-HANDLING 27.5 WHEELS WITH HIGH-VOLUME TIRES GIVE YOU FULL CONTROL ON SINGLETRACK TERRAIN.
KEY PERFORMANCE FACTORS
Modern trail geometry
A slacker head tube angle (65.5 degrees) and steeper seat tube angle (76.5 degrees) place the rider in a confident, balanced position to take on technical climbs and descents.
Proven suspension setup

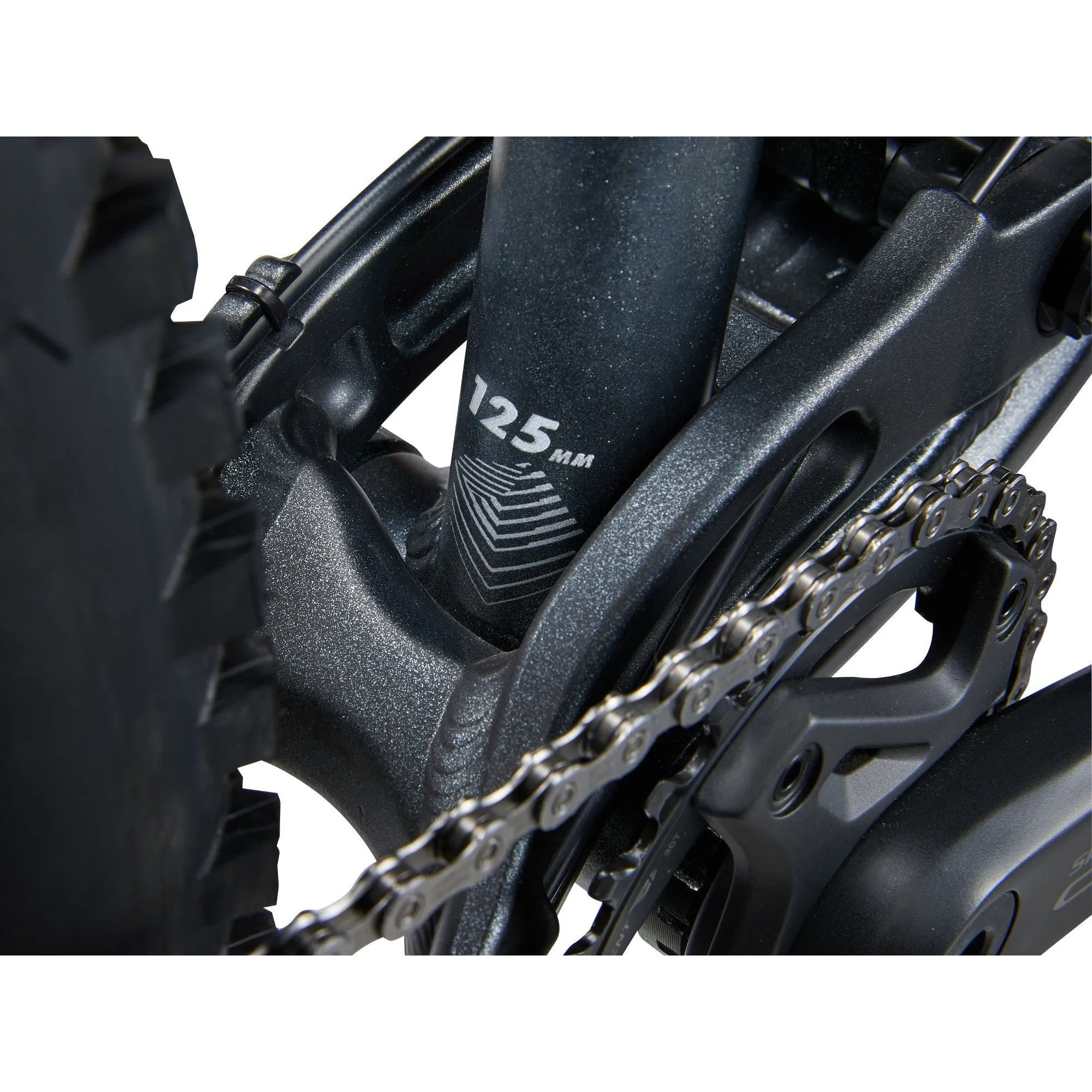

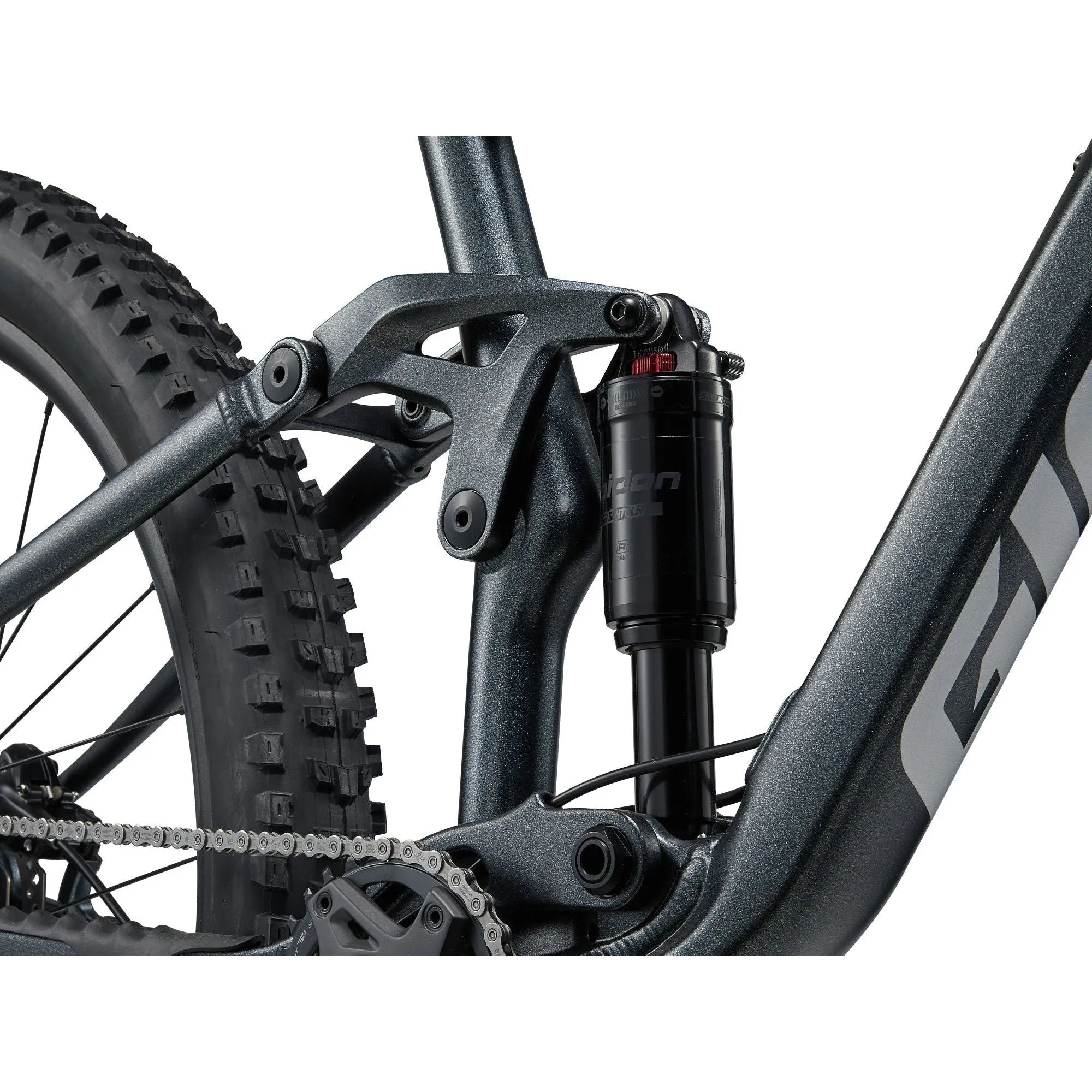

FlexPoint rear suspension offers 125mm of smooth, active travel. The frame is paired with a 140mm fork, delivering maximum confidence on climbs and descents.

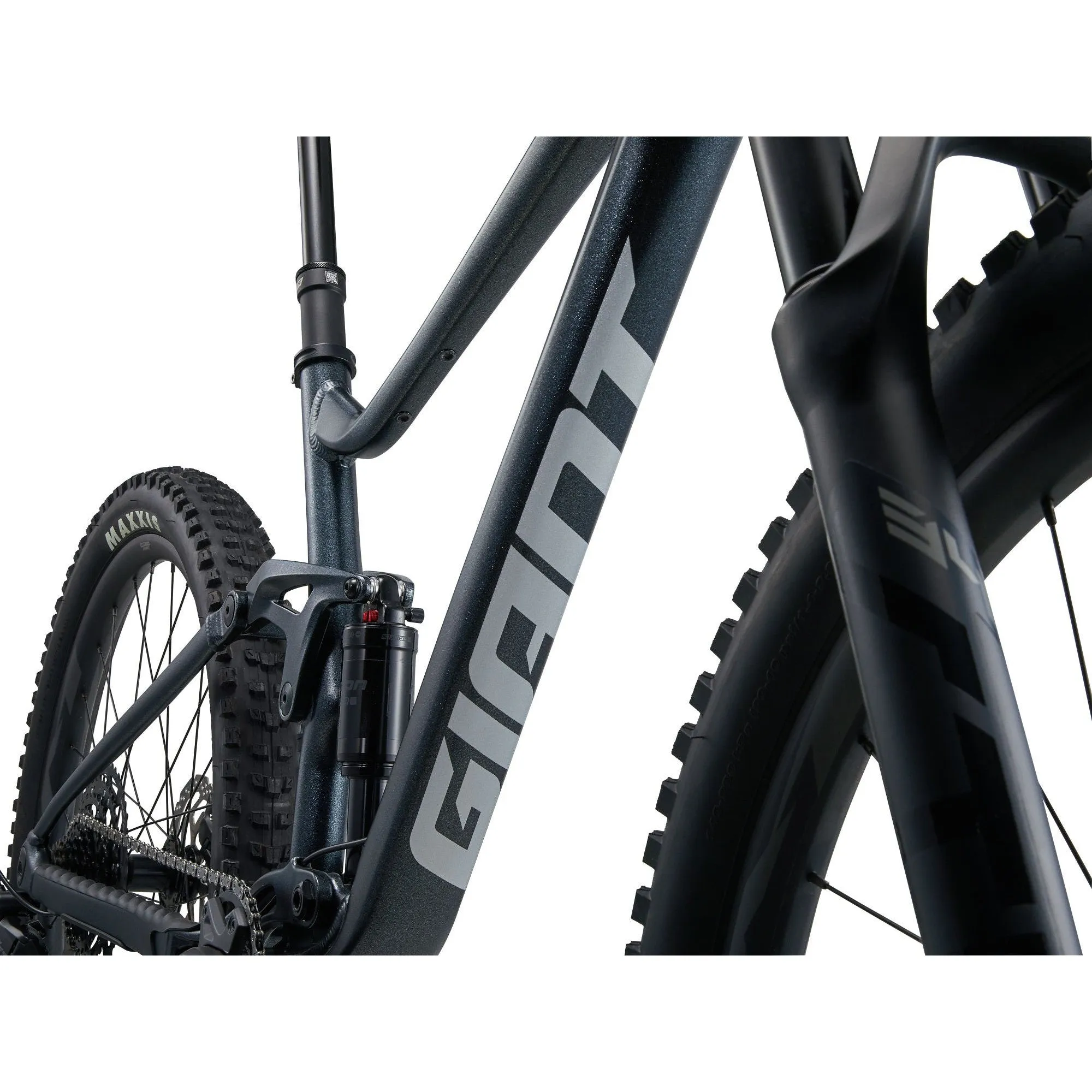

Lightweight aluminum frame
The ALUXX aluminum frameset is hand-built and engineered in-house by the world leader in alloy bicycle technology. An external storage space makes it easy to carry tools, snacks and other ride essentials.
| Sizes | S, M, L |
| Colors | Black Diamond |
| Frame | ALUXX-Grade aluminium, 125mm FlexPoint suspension |

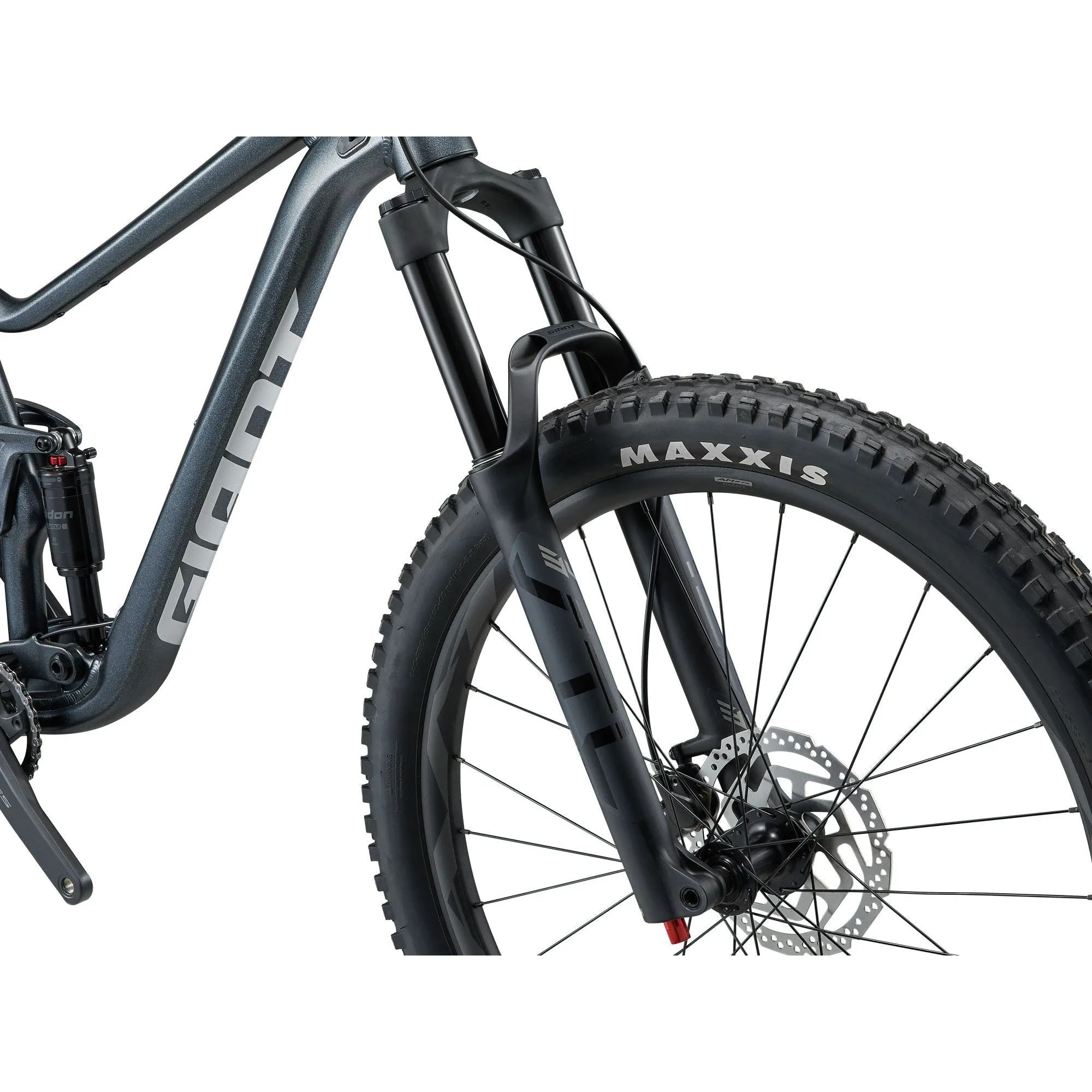

| Fork | Giant STL 34 RCL, 140mm, Boost 15x110 |
| Shock | Suntour Raidon R |
| Handlebar | Giant Contact Trail, 35mm |
| Stem | Giant Contact 35mm S:40mm, M:40mm, L:50mm |
| Seatpost | Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 470mm L: 140-170mm travel / 30.9 x 395mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano CUES, SL-6000, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES, U6000, Shadow |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano CUES, LG300, 11-48 |
| Chain | Shimano CUES, LG500 |
| Crankset | Shimano CUES, U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width |
| Hubs | F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Stainless Steel |
| Tires | [F] Maxxis Minion DHF 27.5.x2.5 WT, wire, TLR, EXO, tubeless, [R] Maxxis Dissector 27.5x2.4 WT, wire, TLR, EXO, tubeless |
| Extras | Tubeless prepared, max tyre size 2.5", max chainring size 32t |
