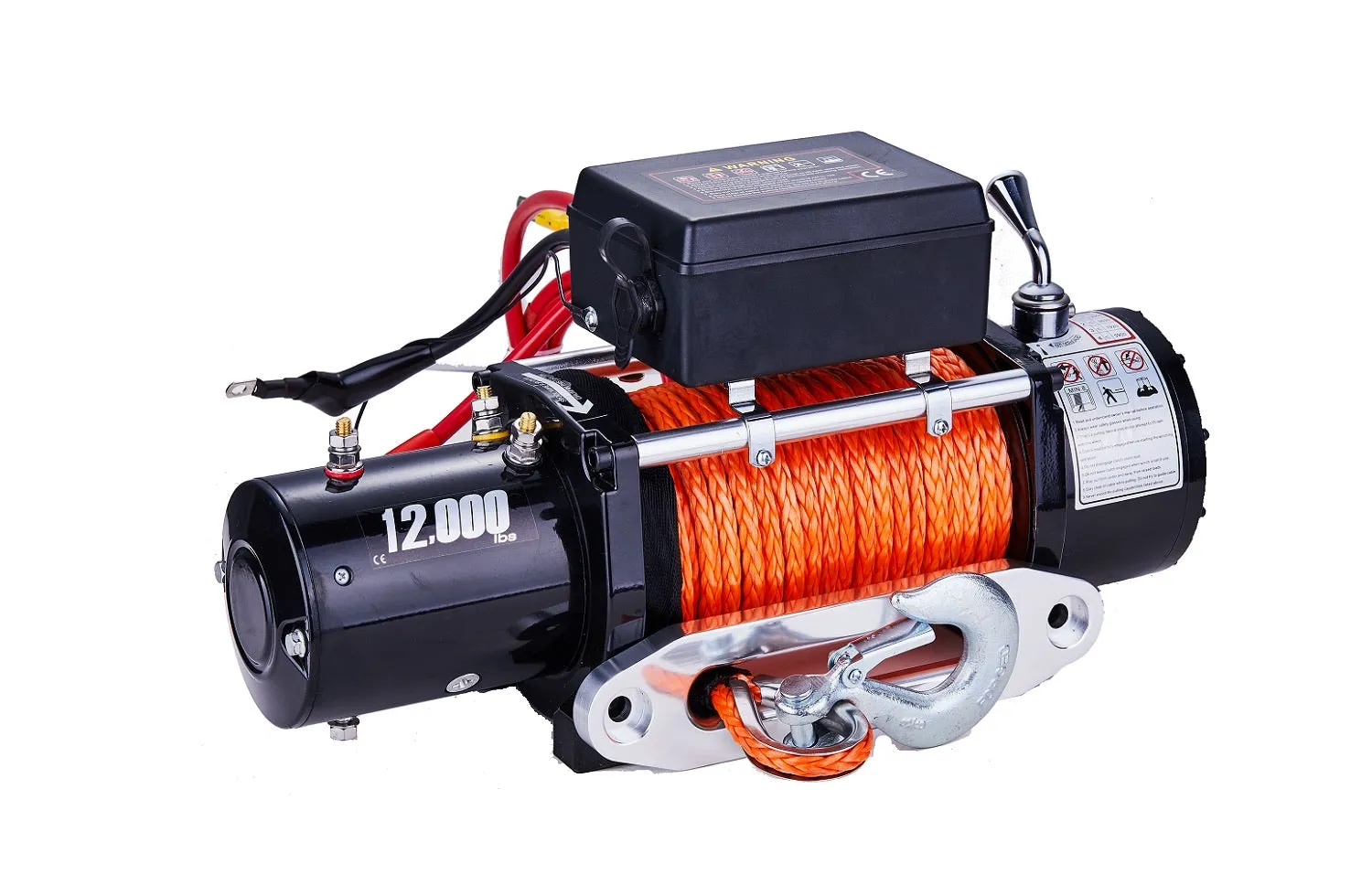

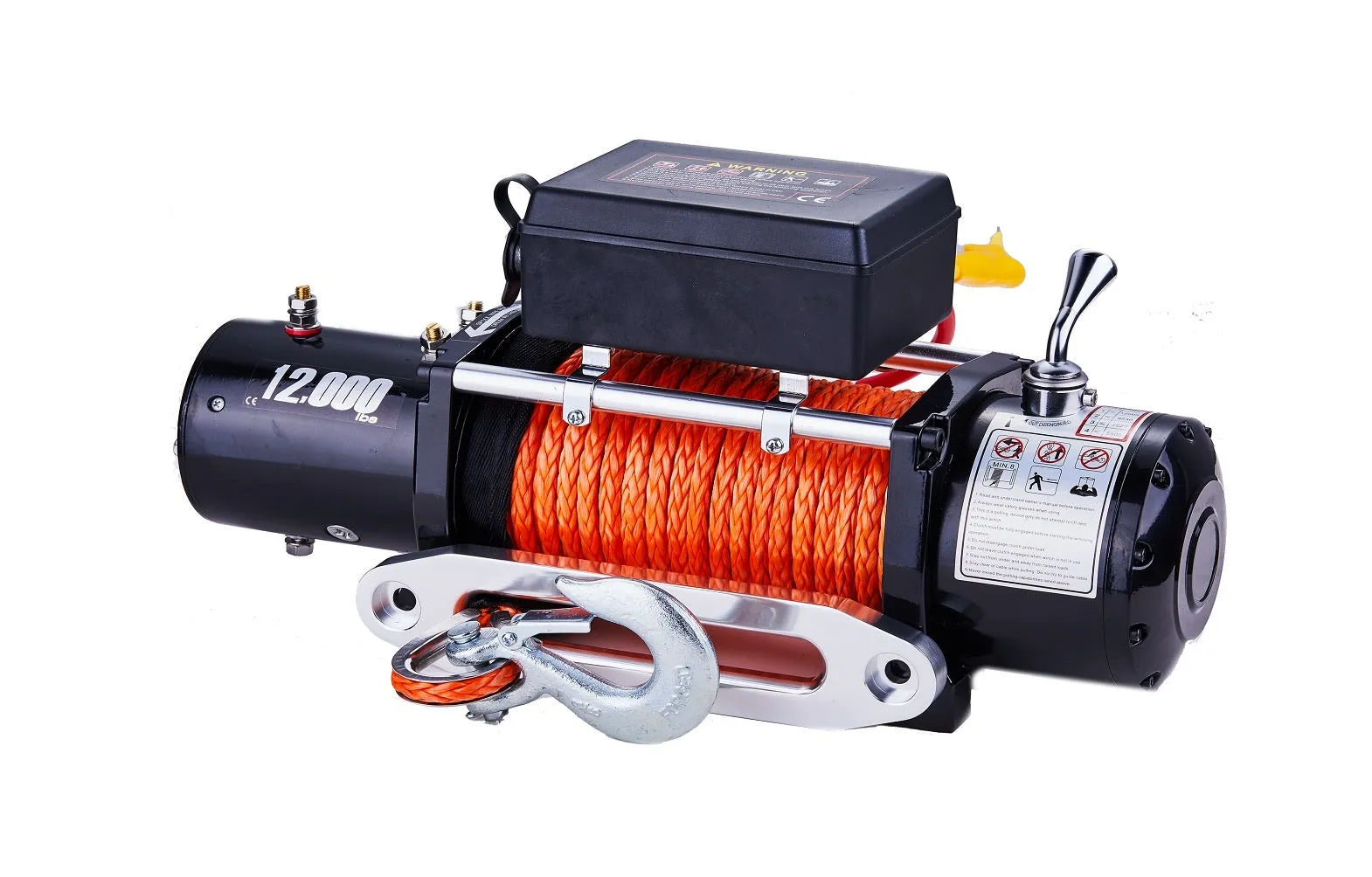

Name: 12,000 LB Synthetic Winch
SKU: 437124

Product Details ＋

This flagship PRO 12,000 LB Winch features a synthetic line, wireless remote, a cover and more. Housing an incredibly capable and reliable motor, this winch is sure to easily get you out of any tricky off-roading situation. Backed by Gladiator Gear’s 5 Year Warranty.

Features

1. Powerful - 12,000 lb. Max rated line pull and 4-Way roller fairlead to guide the rope onto the drum evenly

3. 12 Volt powered for convenient use without extension cords or small gas engines.

4. All metal gearing for durable dependability, durable, rmooth, and reliable 3-Stage Planetary Geartrain.

5. Lightning-fast line speeds, sensitivity of remote control. Waterproof & Anti-Sediment. Exclusive brake design for superior winching control

6. Portable - with built-in carrying handle and quick-atttach mounting plate.

7. Easy installation & unrivaled durability

Technical Details

Rated Line Pull	12,000 lbs (5443 kgs) Single Line
Motor	6.0HP / 4.5KW Series Wound
Gear Reduction Ratio	265 : 1
Gear Train	3-Stage Planetary

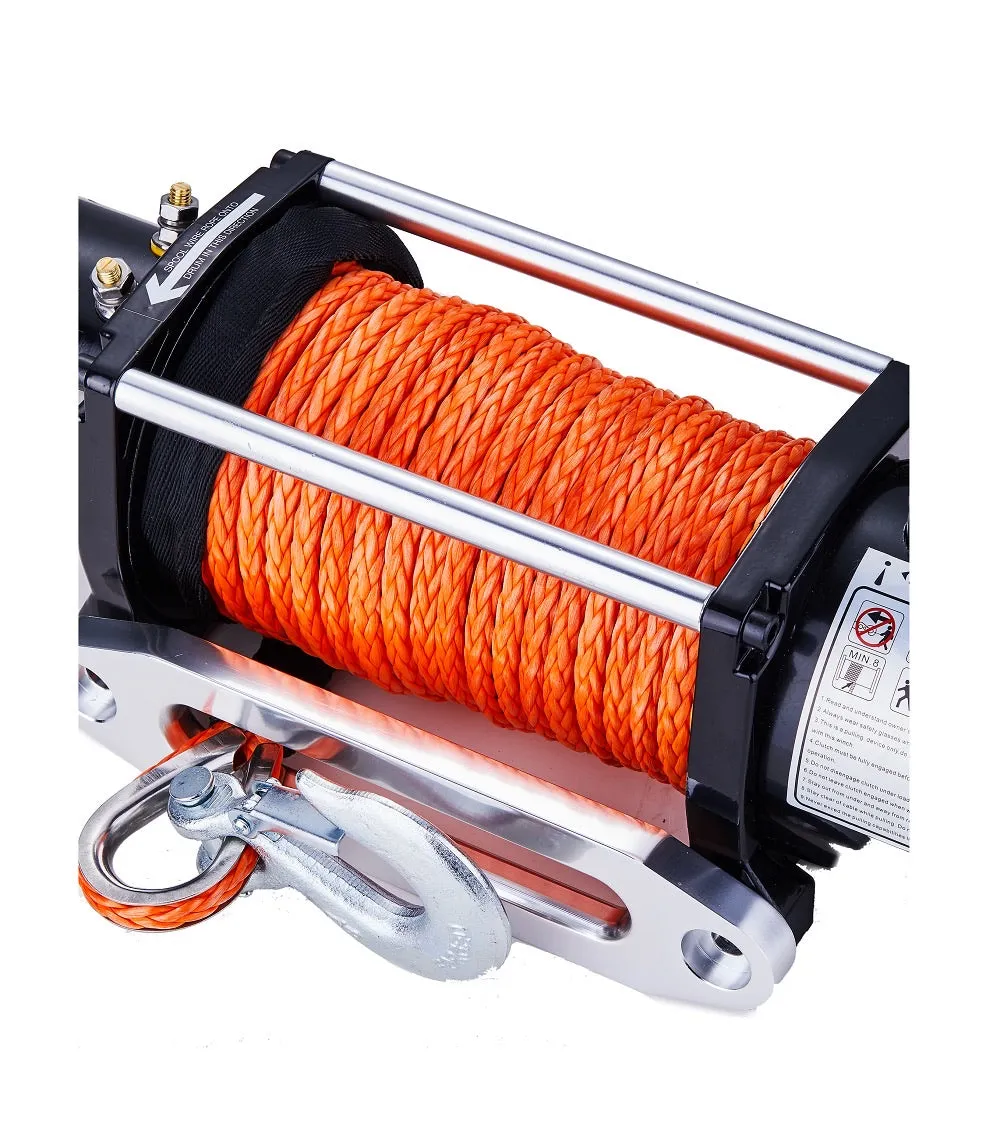

Rope	7/16" × 79' synthetic (11mm × 24m)
Drum Size (Dia.× L)	Diameter 2-33/64"(64mm) × Length 8-25/32"(223mm)
Remote Control Cable	3 m

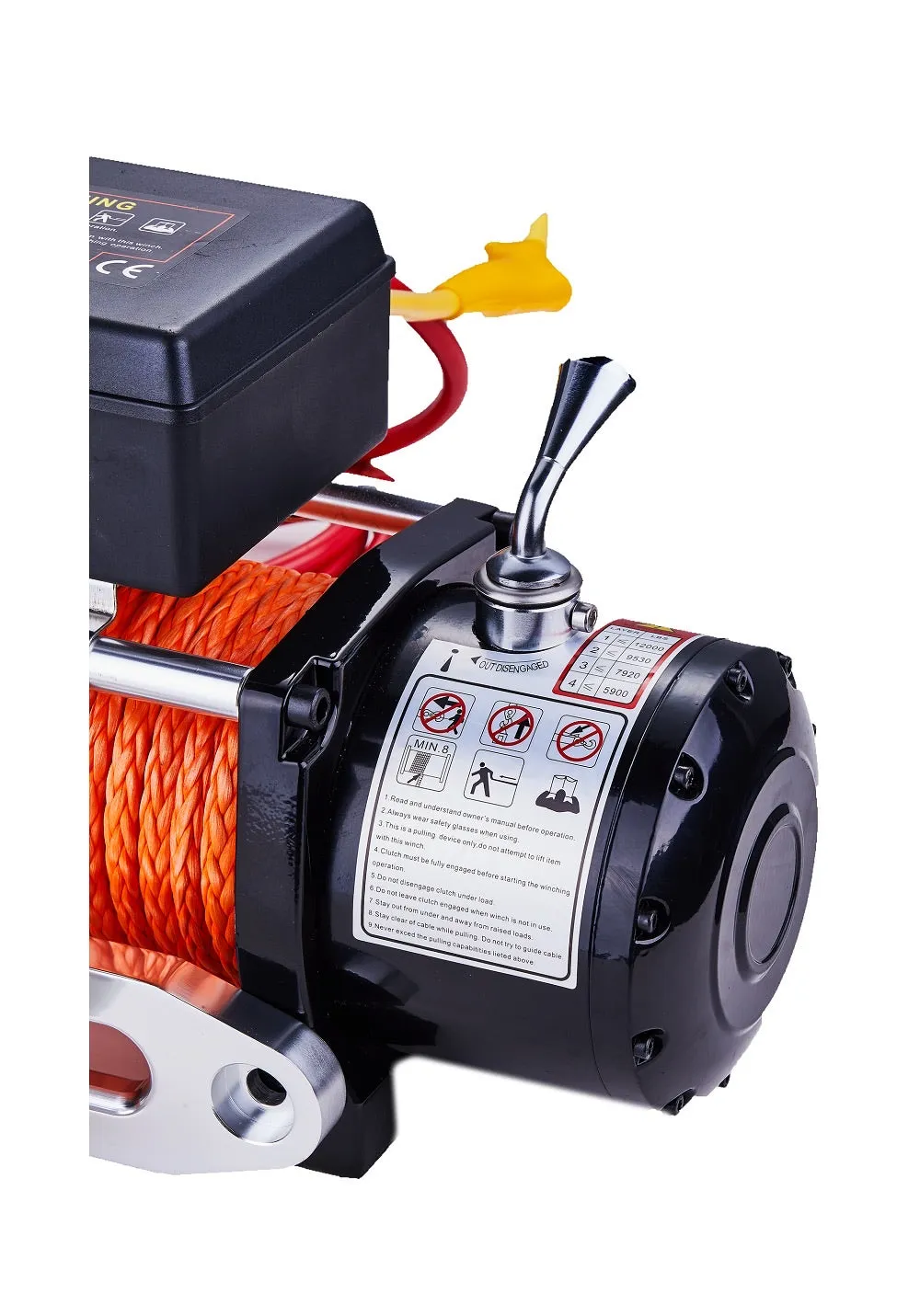

Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Fairlead	4-way Roller Fairlead
Battery Leads	1.8m
Overall Dimensions (L × W × H)	22-1/2 × 9-27/32 × 13-3/8" ( 570 × 250 × 340mm)
Wireless Remote Control	Yes
Net Weight	77 lb (35kg)

Pull, Speed, Amperes, Volts (First layer)
Line Pull Lbs (kgs)	Line speed FPM (m/min)	Current (A)
0	22.0 (6.8)	80
4,000 (1814)	11.5 (3.5)	170
6,000 (2722)	9.8 (3.0)	210
8,000 (3629)	8.2 (2.5)	250
1,0000 (4536)	6.8 (2.1)	300
1,2000 (5443)	5.6 (1.7)	360

Line Pull and Rope Capacity in Layer
Layer of cable	Rated Line Pull Lbs (kgs)	Total Rope On Drum Ft (m)
1	12,000 (5,440)	17.6 (5.4)
2	9,530 (4,322)	37.0 (11.4)
3	7,920 (3,590)	63.0 (19.4)
4	6,770 (3,075)	88.0 (24.0)

12,000 LB Synthetic Winch
